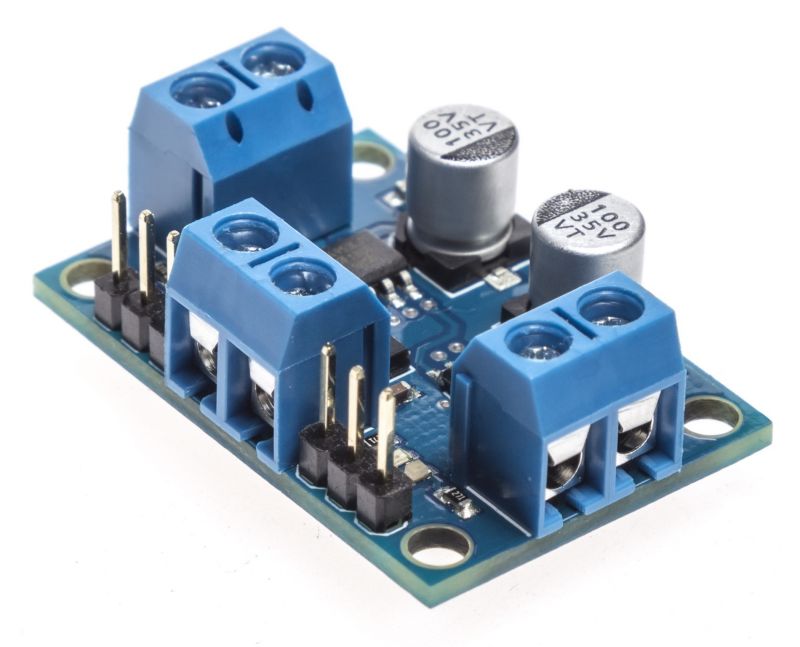

Dual DC Motor Driver 4A V3

Code: MR001-004.3
This powerfull DC motor driver can drive motor up to 30V and 4Amax. It has direction leds for help testing operations.
Available here

Description

The Dual DC Motor Driver 4A V3 allows to indipendently drive two DC motors, controlling both velocity and direction.

The minimum supply voltage allowed is 7V, so you can use also two-cell LiPo batteries (7.4V)that grant small dimensions and low weight characteristics. The maximum supply voltage supported by this board is 30V.

This board also provides direction LED indicators for both channels; this is very usefull during setup stage to verify the firmware behaviour (also without appling a real motor to the output).

Characteristics

Supply voltage

 7 - 30V

Supply current (logic)

 10mA typ.

Output current

 4A (2A per canale)

Data I/O voltage

 TTL standard

Dimensions

 36 x 24 mm

Weight

 9,1g

Operating temperature

 -40 - 85°C

Downloads

 datasheet (english version)

 datasheet (italian version)

Useful link

Dual DC Motor Driver 4A V3 test sketch
